M5 ?1.5 mm silicon nitride ball, tungsten carbide stem, L 30 mm, ML 8.0/20.0 mm, for Zeiss applications
$46.80
M5 straight stylus, for Zeiss applications.
Note: measurement length is to end of ball.
Read More

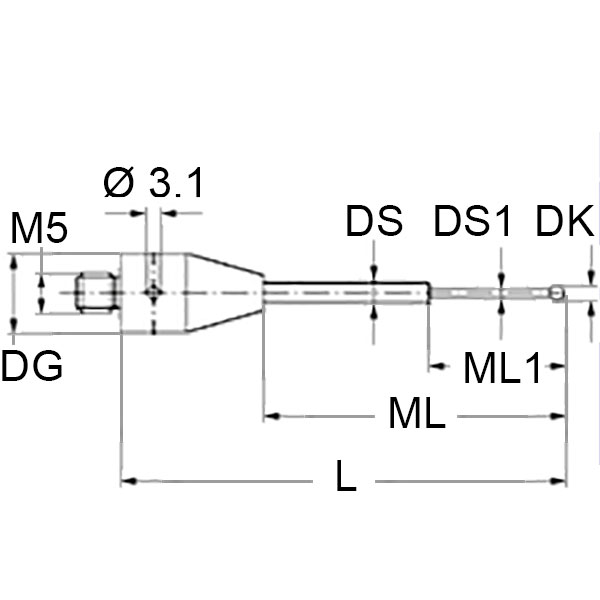

| Thread | M5 |
|---|---|
| Ball dia | 1.5 mm |
| DS1 | 1.0 |
| ML1 | 8.0 |
| Length | 30.00 mm |
| Stem material | Tungsten carbide |
| Tip material | Silicon nitride |
| DK | 1.5 mm |
| ML1/ML | 8.0 mm / 20.0 mm |
| DG/D | 11.00 mm |
| L | 30.00 mm |
| DS1/DS | 1.0 mm / 1.5 mm |
| Weight | 3.5 g |
