product

M5 ?3.5 mm ruby ball, tungsten carbide stem, L 55 mm, ML 10 mm, for Zeiss applications
M5 ?3.5 mm ruby ball, tungsten carbide stem, L 58 mm, ML 48 mm, for Zeiss applications
M5 ?3.5 mm ruby ball, tungsten carbide stem, L 75 mm, ML 65 mm, for Zeiss applications
M5 ?30 mm high strength steel disc for ScanMax, 2 mm width, L 65 mm, ML 55 mm, for Zeiss applications
M5 ?35 mm silver steel disc, 5 mm width, with roller
M5 ?4 mm ruby ball, thermostable carbon fibre stem, L 33.5 mm, ML 23.5 mm, for Zeiss applications
M5 ?4 mm ruby ball, thermostable carbon fibre stem, L 64 mm, ML 54 mm, for Zeiss applications
M5 ?4 mm ruby ball, tungsten carbide stem, L 100 mm, EWL 30.5 mm
M5 ?4 mm ruby ball, tungsten carbide stem, L 100 mm, EWL 50 mm
M5 ?4 mm ruby ball, tungsten carbide stem, L 20 mm, EWL 11.9 mm
M5 ?4 mm ruby ball, tungsten carbide stem, L 30 mm, EWL 21 mm

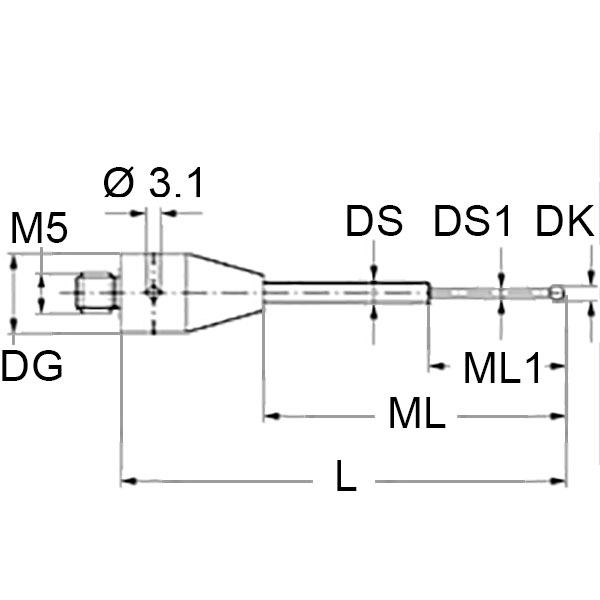

M5 ?4 mm ruby ball, tungsten carbide stem, L 30 mm, ML 20 mm, for Zeiss applications

1
2
3
…
91
92
93
94
95
96
97
…
229
230
231
