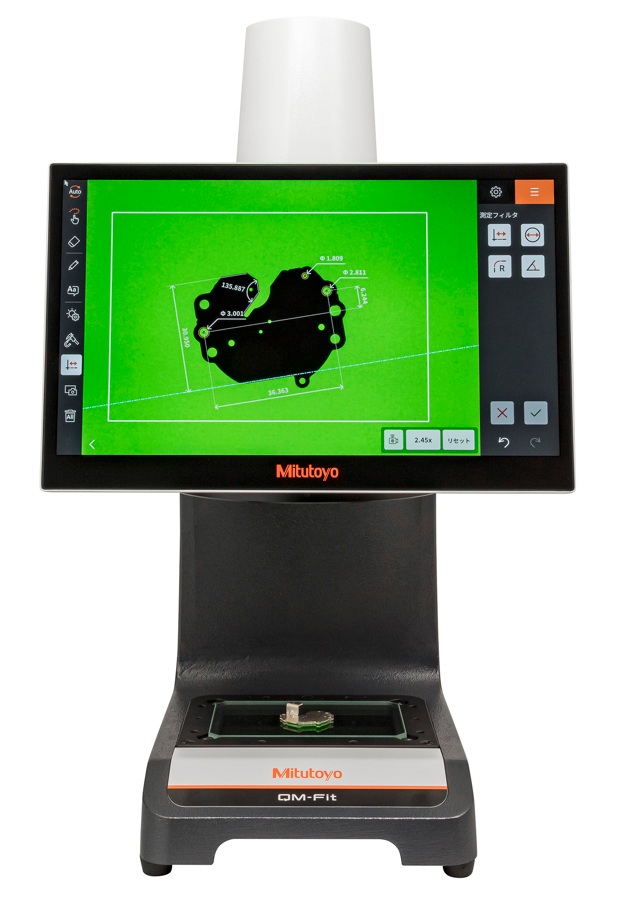

Mitutoyo QM FIT Video Measuring Machine

Faster, Smaller, Smarter
QM-Fit streamlines non-contact dimensional inspection with smart recognition software, a high-resolution 20 megapixel camera, and intuitive touch-screen guidance that anyone can operate. Whether you’re checking thin parts, small components, or multiple features at once, the QM-Fit ensures repeatable accuracy in seconds from a system that fits on any desktop.

Automatic Element Detection

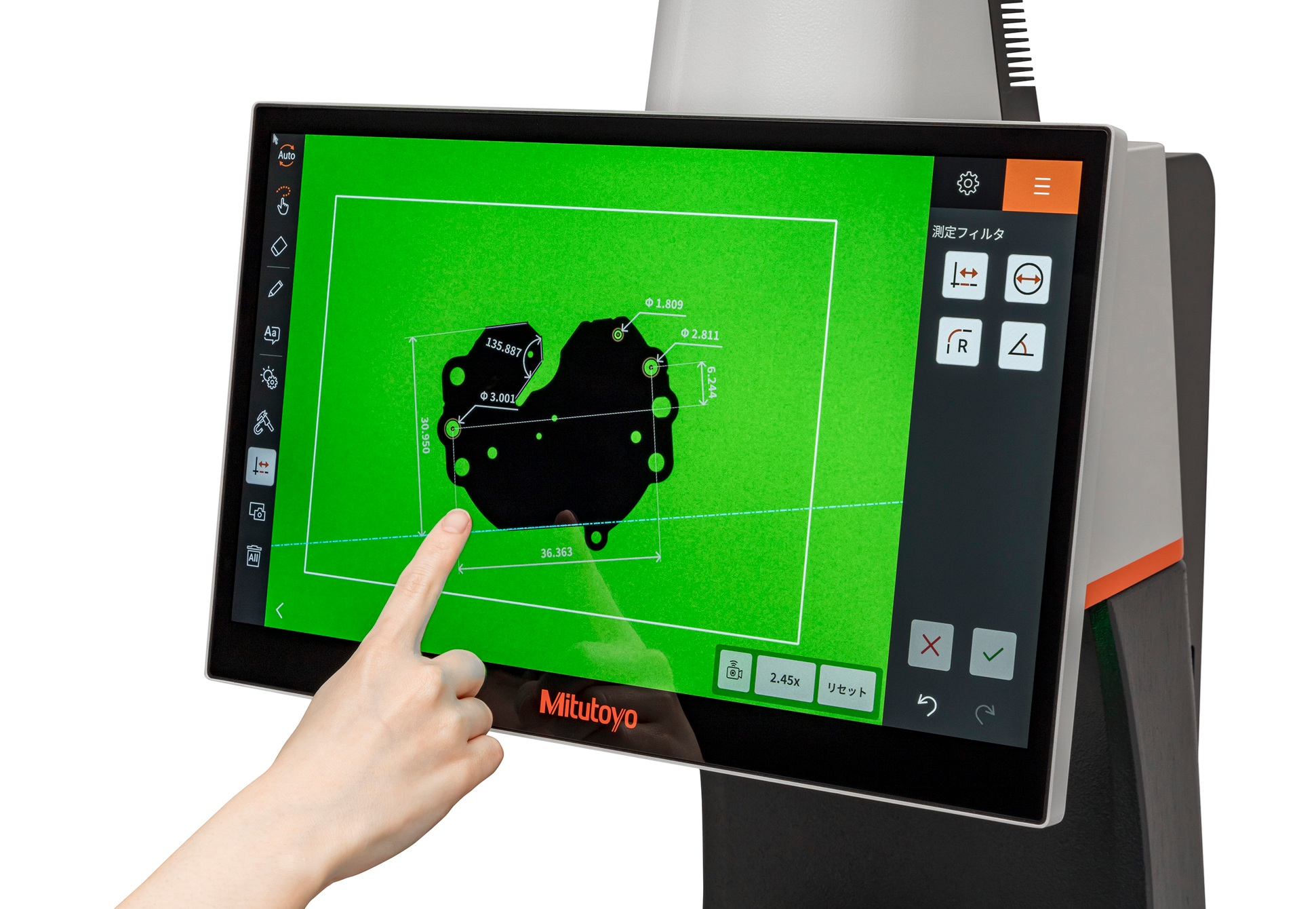

The QM-Fit detects multiple elements at once by automatically recognizing circles, lines and more with a single tap. Measurements can be performed quickly without the need to specify elements one by one in advance

Caliper Snap
A quick measurement with virtual rulers. The rulers automatically snap to edges or circles when placed close to them. Unlike typical instruments, there is no need to align crosshairs, reducing time and effort.

Procedure Recording

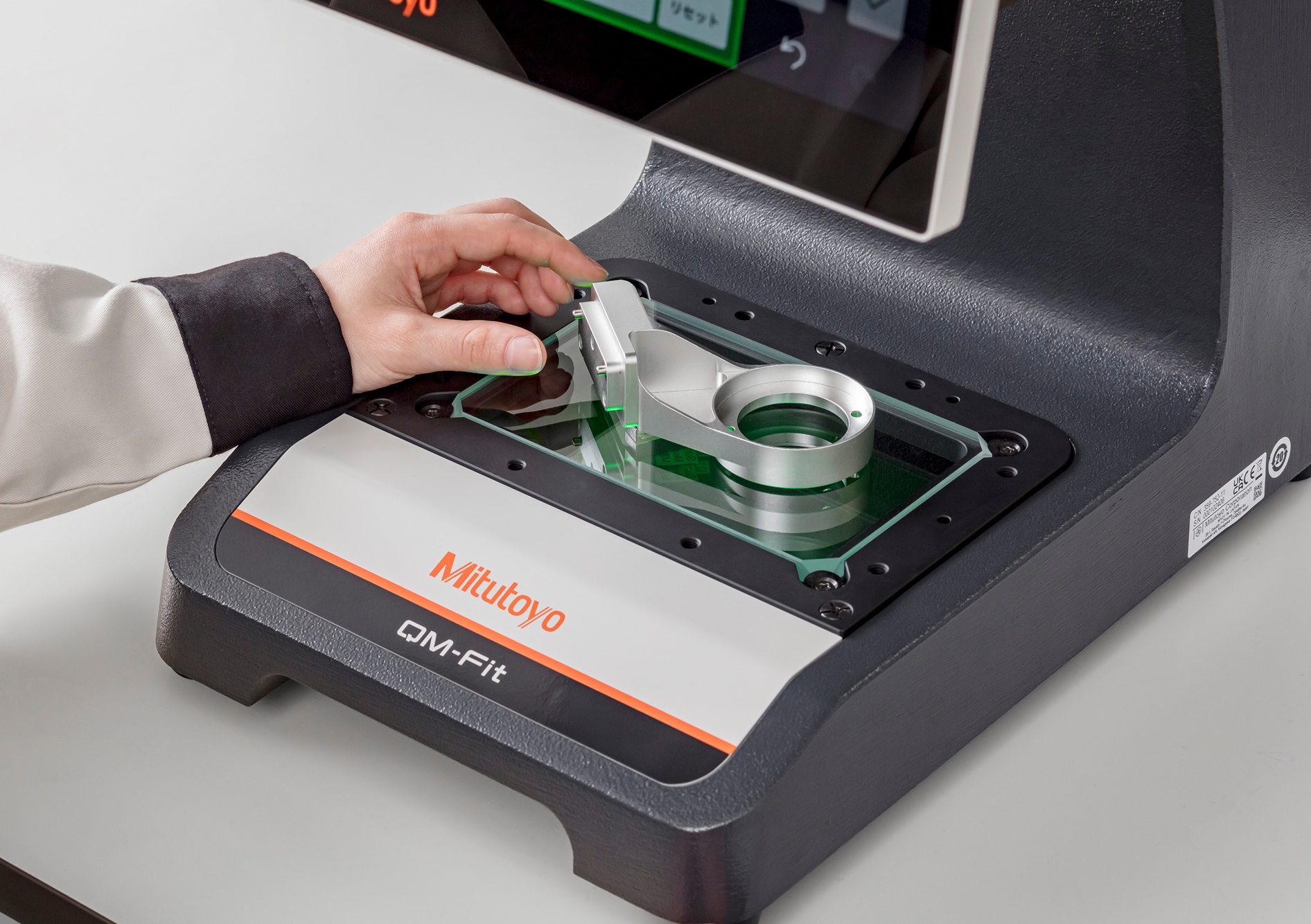

Simply place the workpiece on the stage for automatic inspection. Even if workpieces are randomly placed on the measuring stage, the QM-Fit can quickly recognize their shape, identify the workpiece, and immediately begin measurement. Creating procedures is as easy as measuring a single workpiece

Long Focal Depth Lens
Always in focus, even on tall surfaces. It clearly displays uneven parts with a height up to 36 mm and with deep depressions and protrusions. The extremely large depth of focus eliminates the need to adjust the focus for individual parts with different heights.
