M5 Ø1 mm silicon nitride ball, tungsten carbide stem, L 20 mm, ML 5.0/10.0 mm, for Zeiss applications
$54.29
M5 straight stylus, for Zeiss applications.
Note: measurement length is to end of ball.
Read More

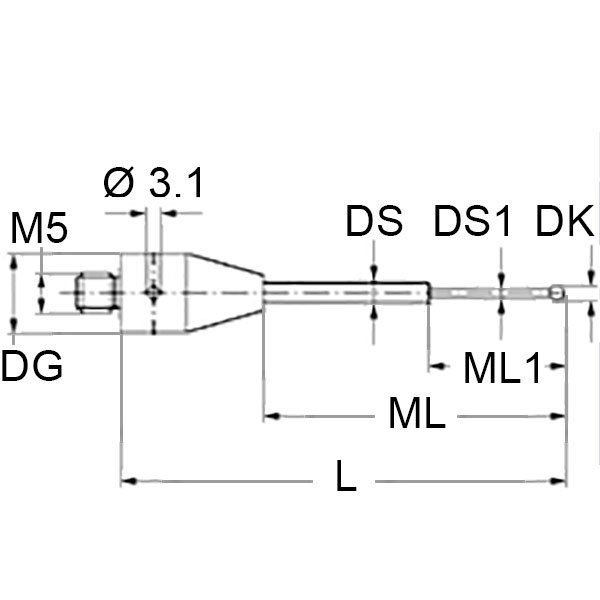

| Thread | M5 |
|---|---|
| Ball dia | 1 mm |
| DS1 | 0.8 |
| ML1 | 5.00 |
| Length | 20.00 mm |
| Stem material | Tungsten carbide |
| Tip material | Silicon nitride |
| DK | 1.0 mm |
| ML1/ML | 5.0 mm / 10.0 mm |
| DG/D | 11.00 mm |
| L | 20.00 mm |
| DS1/DS | 0.8 mm / 1.0 mm |
| Weight | 3.5 g |
