Shimpo MFD Mechanical Force Gauge Dual Scale


Shimpo MFD Series Dual Scale Mechanical Force Gauge with Peak Force Analysis. The Shimpo MFD Mechanical Force Gauge Dual Scale So simple anyone can use, the economical MFD mechanical force gauges with dual kg/lb scales are excellent for push/pull force testing  in manufacturing, material testing, maintenance and inspection applications. The peak force operation mode features an easy push-button reset, especially helpful for repetitive testing in an assembly line or in quality control.  The large dial indicator allows viewing of force changes as they occur. This large dial reduces the chance for parallax errors when taking readings. The MFD was ergonomically designed for handheld use, but may also be used
with the optional handle-great for loads over 15 pounds (6.8 kg). Due to its mechanical design, response time is immediate. Calibration is achieved by a set of precisely matched springs which are overload protected.  All standard Series MFD force gauges include a protective carrying case, calibration certificate, plus attachment adapters.



Shimpo MFD Mechanical Force Gauge Dual Scale Features:

•Dual kilogram (kg) and pound (lb) units allows flexible usage in testing to multiple standards
•Precision gauge movement provides a quick response for instantaneous analysis
•Measures Tension and Compression Forces – Only one gauge required
•Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
•Smooth mechanical operation with precise action produces repetitive, proper readings
•Peak Mode Reset is ideal for repetitive peak testing applications
•Compact, light-weight, ergonomic design is perfect for handheld use
•Rear threaded inserts makes it easy to mount to test stands
•Included Accessories Carrying case and attachments (flat head, hook, chisel, notched head, cone head, extension rod), mounting screws

Available Options

Force Measuring Capacity Product Number
4.5 lb (2 kg) MFD-002
11 lb (5 kg) MFD-003
22 lb (10 kg) MFD-004
45 lb (20 kg) MFD-005
110 lb (50 kg) MFD-006

Shimpo MFD Series Mechanical Force Gauge :
•Accuracy ±1% F.S.
•Display Analog 2 in. diameter (50 mm); rotatable 360° for taring purposes
•Live/Peak Mode Selectable
•Needle Update Immediate
•Threaded Insert 4 on back for mounting inserts
•Overload Capacity 120% of range
•Product Weight 1.25 lb (0.57 kg)
•Package Weight 2.2 lb (1 kg)
•Warranty 1-Year

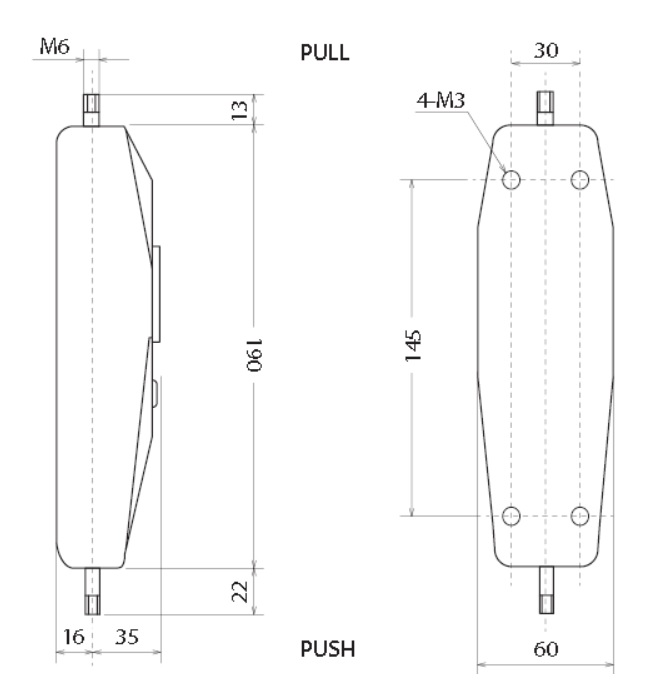

Click below to enlarge Shimpo MFD Force Gauge dimensions:


dial force gauge

Download the Shimpo MFD Force Gauge literature by using the link below:

Shimpo MFD_Series
