Order no. 4033101 4033106
Measuring span in mm 12,5 12,5
Resolution in mm/inch 0,01 /.0005“ 0,001 / .00005“
Error limit in mm 0,02 0,005
Standard Factory standard Factory standard
Measuring force in N 0,5 – 1,2 0,5 – 1,2
Connection thread M2,5 M2,5
Mounting shaft in mm 8 8

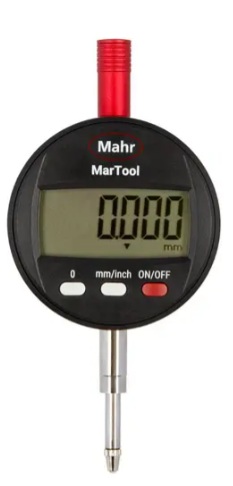

Mahr MarTool Digital Indicators 1075 E
$125.00 – $300.00
Mahr Martool Digital Indicators 1075 E Benefits:
High contrast LCD display, thus very clear and safe to read
Lifting cap with dust protection function at the end of measuring spindle
Mounting shaft and measuring spindle are both made of hardened stainless steel
Read More
Operating Functions
• ON/OFF • Auto OFF (6 min.)
• RESET (set display to zero)
• mm/inch
• Reversal of counting direction
Scope of delivery
• Incl. battery (3V Lithium, CR2032)
• Operating instructions (online QR code)
• Test report
• Cardboard box
