Mark-10 TSFM500-DC/TSFM500H-DC Motorized Force Test Stand

$4,150.00

The TSFM500-DC Advanced Motorized Force Measurement Test Stand offers all the mechanical specifications of the TSFM500 motorized test stand, including 500 lbF (2200 N) force capacity, generous clearance and throat depth, rugged design, and more, stepper motor design that prevents speed variation with load, and more. The TSFM500-DC offers expanded capabilities, including PC control, programmable cycling, auto return, and other features.

Clear

Accessories

Mark-10 TSFM500-DC/TSFM500H-DC Motorized Force Test Stand Features:

  • Set of upper and lower adjustable solid state limit switches. Repeatable to within 0.001″ [0.03 mm].
  • Universal power supply: 80-250 VAC
  • Manual travel knob
  • Mounting holes for bench mounting
  • Base may be removed for alternative mounting
  • Compatible with Mark-10 force gauges, accessories and grips
  • CE mark



Available Options

items Product Number
Test stand, motorized, 500 lbF, Vertical TSFM500-DC

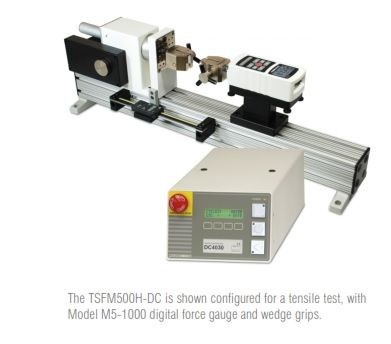

Test stand, motorized, 500 lbF, Horizontal TSFM500H-DC

Mark-10 TSFM500-DC/TSFM500H-DC Motorized Force Test Stand:

  • Maximum force: 500 lb [2200 N]
  • Maximum travel: 4″ [102 mm]
  • Speed range: 0.01 – 6 in/min [0.2 – 150 mm/min]
  • Speed accuracy: ±0.2% of setting, ±0% variation with load
  • Loading table with 25 #10-32 UNF holes for fixture mounting

Download the Mark-10 TSFM500-DC/TSFM500H-DC Motorized Force Test Stand product information using the link below:

Mark-10 TSFM500-DC/TSFM500H-DC Motorized Force Test Stand
