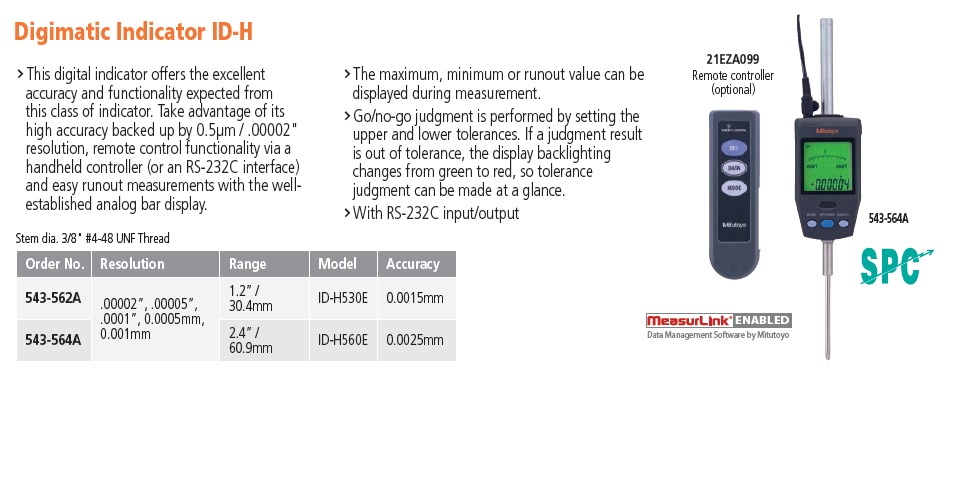

Mitutoyo ID-H LCD High Accuracy Digimatic Indicator W/Dynamic Measurement

Mitutoyo 543-562A, IDH Digimatic Indicator has five user-selectable resolutions of 0.00002, 0.00005, or 0.0001, and 0.0005 or 0.001 mm, an accuracy of + or – 0.00005/0.0015 mm, and a total measurement range of 0 – 1.2 inches/0 – 30.4 mm, and can be set to zero at any spindle position for measuring in either or both directions (plus or minus). The LCD display has a sealed housing that meets Ingress Protection Rating 30 (IP30) standards for dust and water protection, an 8-mm diameter stem, a steel ball contact point, and a flat back. The indicator displays maximum and minimum read hold, changes color from green to red when user-defined tolerances are exceeded, and has total indicator reading (TIR) capability that displays the absolute difference between the highest and lowest readings. A backup memory function retains user-defined setup conditions when power is interrupted, and an alarm low voltage and overflow, tolerance limit setting, and counting value composition errors. The indicator has remote control functionality, RS-232C data input and output, and SPC data output features that allow for data analysis, and a choice of two power sources (AC or 9V battery).
