Mitutoyo Laser Micrometers
$7,743.75 – $11,430.00
Mitutoyo America Corporation new series of System Laser Scanning Micrometers, Controller and IF modules. These laser micrometer models are IP-67 rated and have been
developed to better suit in-line/automated applications.
The Mitutoyo Laser Scanning Micrometers will be offered in two sizes/models: the LSM-02-A and the LSM30-A. The LSM-02-A measures diameters from 0.005 – 2mm while the LSM-030-A measures diameters 0.3-30mm. For diameters exceeding 30mm Mitutoyo will offer three large-diameter measuring kits to expand the measurement range to up to 180mm.
The new controller LSM-CU-A is compact, DIN rail mountable and designed for installation inside of equipment. They offer standard interfaces including USB-C, Digital I/O and Analog output.
There are also optional IF modules for adding industrial communications capabilities. The LSM-CU-A comes standard with user-friendly configuration software (LSMPAK). The optional IF modules provide the LSM-CU-A with multiple industrial communications options including Ethernet/IP, EtherCAT, Profinet, and CC-Link. These now allow the LSMs to be controlled and operated through the end user’s network.
As with legacy models, there will also be a range of accessories including calibration gage sets, guide pullies, work stages, air-blowers, laser stabilization covers and large diameter measuring kits.
Read More

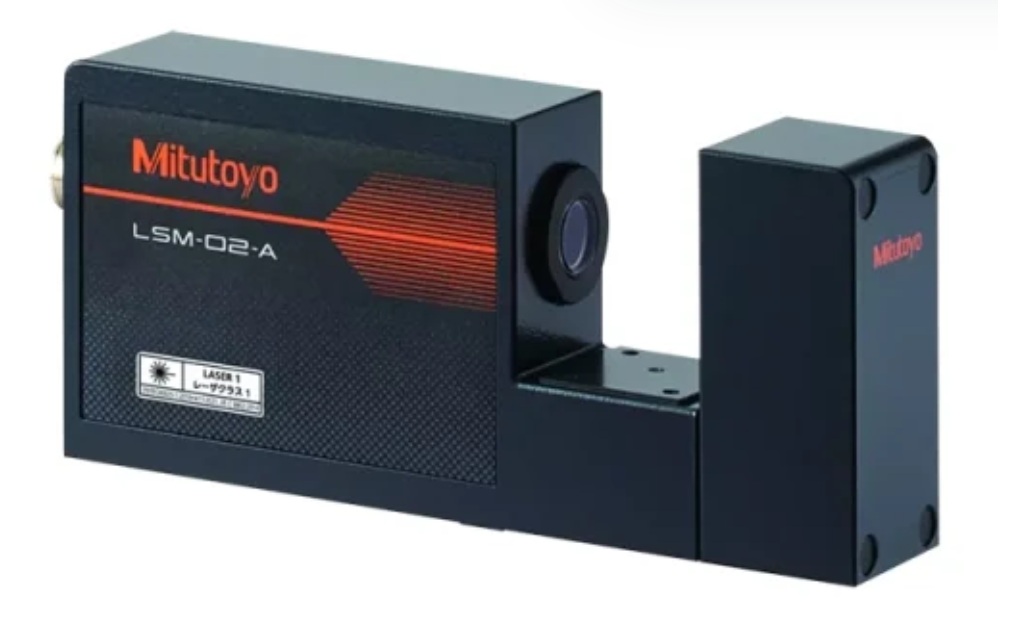

Model 544-123 LSM-02-A Range .005 to 2mm .05-2mm(: Applies when configured as "Do not perform ultra-fine wire measurement" or "Edge specification" in the basic setup)
Model 544-124 LSM-30-A range 0.3 to 30 mm
544-121 (mm/inch switchable type) LSM-CU-A controller
02AGQ300 interface unit LSM-EI-A EtherNet/IP NETWORK STATUS Indicator: Dual Color LED1 (red/green)
02AGQ370 interface unit LSM-EC-A EtherCAT RUN Indicator: Single Color LED1 (green) ERROR Indicator: Single Color LED1 (red)
Interface unit
02AGQ390 LSM-CC-A
Main Units
Code Description
544-124 LSM-30-A
544-123 LSM-02-A
544-121 LSM-CU-A/INCH $4,350.00 R
02AGQ300 Ethernet/IP interface for LSM-CU-A
02AGQ350 PROFINET interface for LSM-CU-A
02AGQ370 EtherCAT interface for LSM-CU-A
02AGQ390 CC-Link IE TS interface for LSM-CU-A
Kits (Packages)
Code Number Description
64PKA299 - 2mm LSM - package with cabling, interface (except built-in USB), NO tablet
64PKA300- 2mm LSM - with tablet, cabling, NO interface (except built-in USB)
64PKA301- 30mm LSM - package with cabling, NO interface (except built-in USB), NO tablet
64PKA302 - 30mm LSM - with tablet, cabling, NO interface (except built-in USB)
Optional Accessories
Code Number Description
02AGD490 ADJUSTABLE WORK STAGE FOR LSM503
02AGD200 PULLEY FOR LSM-500/500N
02AGD110 GAGESET FOR LSM-500
02AGD130 CALIBRATION GAGE SET FOR LSM-503
02AGQ450 AIR-BLOW UNIT FOR LSM-30-A
02AGQ452 LASER STABILIZATION COVER
02AGD270 WORKSTAGE FOR LSM-501/503/902
02AGD420 V-BLOCK FOR LSM-501/503
02AGD430 STOPPER BLOCK FOR LSM-501/503
