Mitutoyo MeasurLink SPC Software

$602.53$11,125.00

MeasurLink® 10 features a new, updated user interface to meet modern standards and even better efficiency in reporting, analysis and data collection.

Major updates have been added to this version of MeasurLink® to support AS9102 First Article Inspection Results along with support for acceptance sampling standard C=0 and Z1.4, analytics on missing inspections and the ability to automate reports for further analysis.

INTRODUCING THE REVOLUTIONARY MEASURLINK WITH OCR TOLERANCING EXTRACTION!

If you’re tired of manually deciphering complex drawings to set tolerances for your precision measurements, MeasurLink® 10.1 eliminates tedious tasks to make measurement data analysis easier, inspection more efficient, boost productivity, and better ways to find and eliminate sources of variation!

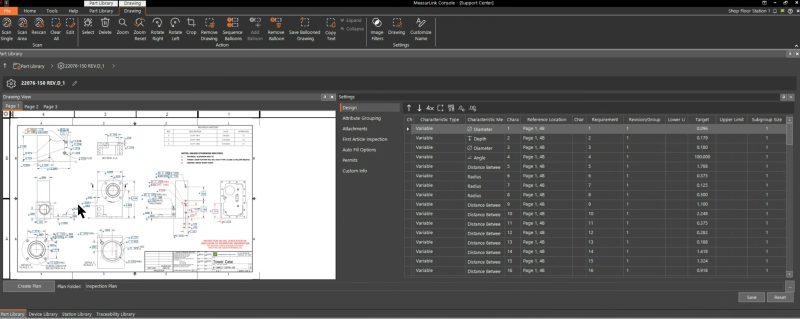

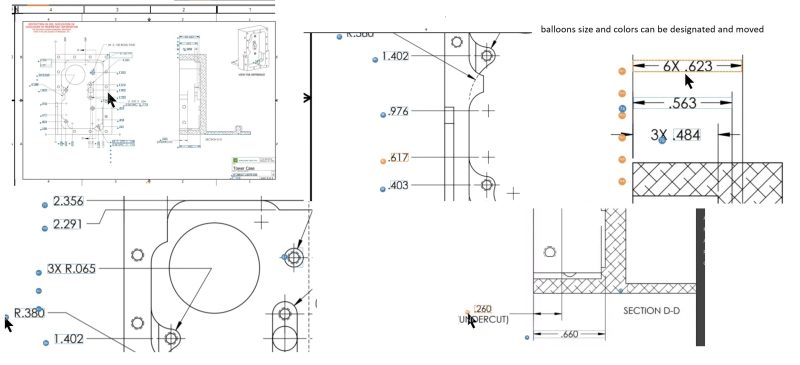

MeasurLink®  now includes Optical Character Recognition (OCR) technology to automatically extract tolerances helping to save massive amounts of time by automating the extraction of tolerances from engineering drawings and eliminating manual data entry or potential errors from human interpretation along with other benefits:

  • Boost productivity and accelerate your workflow with even more measurement process streamliming
  • Eliminates the risk of transcription errors and ensures measurements align perfectly with design specs
  • Seamlessly integrates with your existing measurement equipment and quality control systems

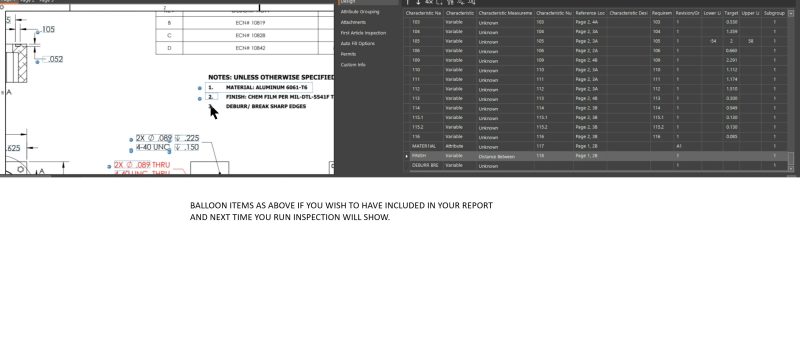

  • Generate detailed reports with extracted tolerances, measurements, and quality data for better, faster decision making and industry standard compliance

Mitutoyo MeasurLink Support
Mitutoyo prides itself on excellent, timely support, a team of engineers dedicated only to supporting MeasurLink customers. The software is developed in the same room as the support team, so the highest level of support is available.

Need to send SPC Data to your CMM- No Problem

Example: Mitutoyo Measurelink to a Zeiss CMM with Calypso Data
Zeiss Calypso software has an option to output its measured results in a file type that ends with *_chr.txt.  MeasurLink Technical Support has created templates to read, parse, and import the CMM data into MeasurLink for data collection and SPC

This import can be automated too, so as soon as the CMM program finishes and outputs the file to a folder, MeasurLink will read it and display graphical results seamlessly and immediately. Measurelink works in this manner with any type of Coordinate Measuring Machine Software.



Read More

Mitutoyo MeasurLink SPC Software Features:

MeasurLink is designed to detect and display patterns and provide additional statistical information. Many patterns can be seen appearing on SPC charts, including:

  • Cycles
  • Trends
  • Freaks
  • Mixtures
  • Grouping or "bunching" of measurements
  • Gradual change in level
  • Sudden shift in level
  • Instability (abnormally large fluctuations)
  • Stratification (abnormally small fluctuations)
  • Interactions (two or more variables acting together)
  • Systematic variation
  • Tendency of one chart to follow another
Clear

Bi-Directional Communication with MeasurLink Support for S1 Digital Tools
Experience seamless control and communication with S1-enabled gages—right from MeasurLink Real-Time.
With version 10.4, users can power on gages, perform zero, preset values operations, and access critical stored information such as calibration dates and serial numbers—all directly through the software interface.
Enhanced Support for Mitutoyo S1 Gages in MeasurLink 10.4 MeasurLink 10.4 now includes foundational support for several key functions of Mitutoyo’s latest S1 gages, streamlining both data collection and gage management workflows:
•Power on multiple gages
•Perform zeroing and preset value operations
•Reset peak values
•Change gage modes
•Retrieve calibration date and serial number
•Identify measurement units and gage resolution
•See a real time graph and value of the gage reading without taking data
•Continuous poll data at a specific time frame
This integration marks a significant step forward in improving efficiency and usability for users of Mitutoyo’s advanced S1 gage technology.
Benefits
In addition to the other benefits of using MeasurLink (i.e.: SPC process improvement, reporting, work instructions, etc.), users can expect:
•Increased efficiency with single button operation
•Improved ease-of-use with single button operation
•Risk mitigation and improved auditing with automatic traceability to the gage
•Eliminate human error when creating new gages in Gage Management

Download the Mitutoyo MeasurLink SPC Software  product literature by using the link below:

ML10_New_Product_Announcement
