VICIVISION Optical Measuring Machine for Barrel Inspection and ID Measurement
A new way to measure the internal dimensions

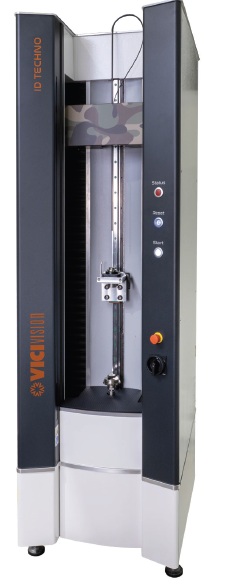

The TECHNO ID demonstrates the next-generation approach to internal dimensions
TECHNO ID demonstrates the next-generation approach to non-contact optical measurement for rifled barrels. The Techno ID targets axial mapping of the bore geometry, rifling profile, and roundness variations for advanced quality control, R&D, and forensic applications.
Why it’s different
- Non-contact measurement with high optical resolution
- All key parameters extracted simultaneously
- Continuous twist and groove tracking along the entire bore
- Digital reporting for traceability and data analysis
Read More
Parameter what it means why it matters
Grooves diameter Distance between opposing grooves Detects wear or deformation affecting bore size
Landing diameter Distance between opposing lands Identifies machining defects and can be used to measure wear over time
Groove depth Radial distance from groove to land Evaluates bullet engagement and rifling integrity
Groove Pitch and twist rate Longitudal distance for one full rifling rotation Verifies actual vs designed twist: critical for consistency
Bore Roundness Deviation from perfect circularity Detects ovalization and roundnedd
