VICIVISION TECHNO shaft measuring Models ranging 40-250 mm dia. up to 2000mm Length
This measuring machine range is designed to adapt to current and future manufacturing demands. Discover the wide scope of measurement ranges offered. The modular range of the Techno series can provide the most suitable machine for your production. From 40 to 250 mm in diameter, and from 300 to 2000 mm in length. VICIVISION offers the evolution of the profile projector, a compact and quick optical comparator for shopfloor use.
Read More
Dimensional measurement
- Lengths, diameters, radii, angles
- Thread measurement
- Thread dimensions and form
- Form measurement
- Straightness, roundness, cylindricity, conicity, flatness
- Profile and freeform measurement
- Cam profiles, tolerance ranges, complex contours
- Position measurement
- Radial/axial runout, symmetry, parallelism, concentricity, coaxiality

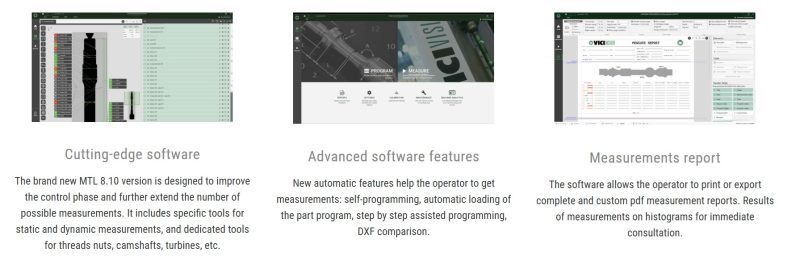

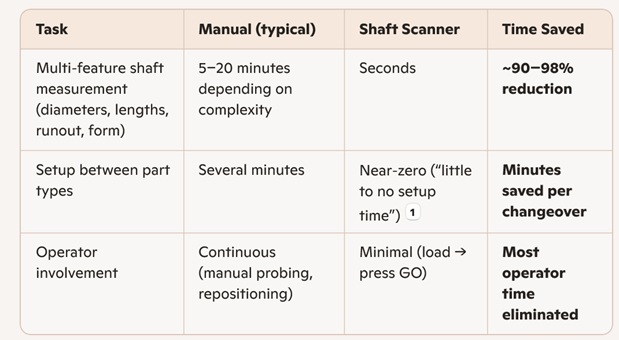

Time savings
In real production environments, this typically means:
- 5–15 minutes saved per part for complex shafts
- Hundreds of operator hours saved per year in medium‑volume production
- Near‑elimination of operator‑dependent variation, reducing rework and scrap
Manufacturers explicitly highlight that optical shaft scanners:
- “Minimize operator routes” and “reduce sources of error”
- Provide “complete measurements in seconds” with “very little training required”
VICI Overview of Models Flyer 2025
ID MEASUREMENT Vici Vision ID Techno
MEASURE THREADS AND FITITNGS

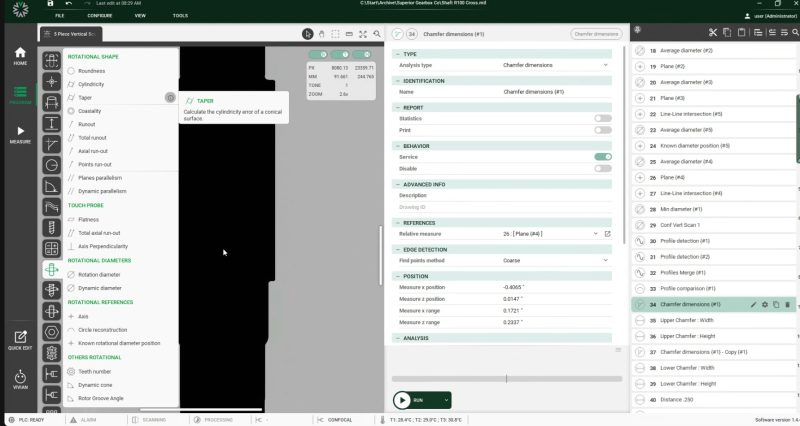

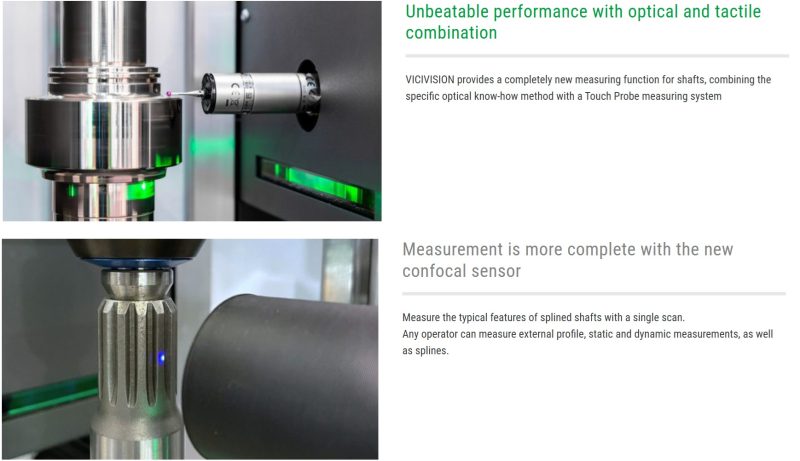

TOUCH PROBE
CRANKSHAFT MEASUREMENT ON VICI TECHNO
VICIVISION Tool Wear Compensation (TWC) function, the machine helps to correct the tool parameters,
eliminating any human transcription error
Tool-Wear-Compensation_VICIVISION_ENG
FLYER-CRANKSHAFTS-ENG Tool-Wear-Compensation_VICIVISION_ENG
How it works
OPTICAL MEASUREMENT / 01
Measure without
touching the part.
VICIVISION uses telecentric optics, controlled illumination, and advanced software to measure complex components quickly and accurately without physical contact.
THE BASIC PRINCIPLE / 02
Light. Optics. Data
A simple process. Extraordinary results. VICIVISION systems use a combination of controlled illumination, telecentric optics, and advanced software to turn an image into precise dimensional data.
ELECENTRIC OPTICS / 03
See the part.
Not the distortion.
Telecentric optics use a parallel viewing geometry, eliminating perspective distortion and maintaining dimensional accuracy across the entire measurement field.
ROM SILHOUETTE TO MEASUREMENT / 04
One image. Dozens of dimensions.
The illuminated profile allows VICIVISION systems to analyze external geometry and visible features such as grooves, shoulders, tapers, and through-holes—capturing dozens of measurements in seconds.

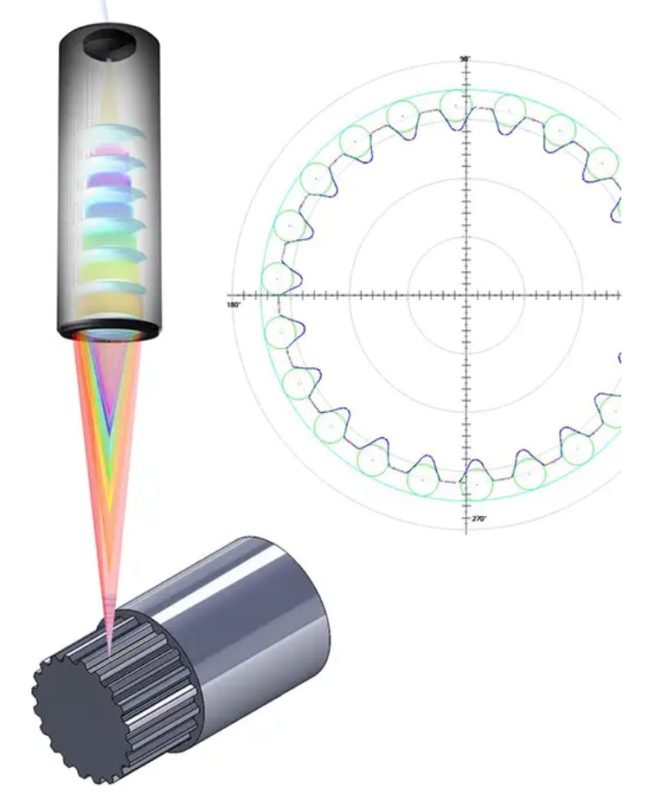

Confocal: Measure the typical features of splined shafts with a single scan
Reduce inspection time by 95%.
- Suitable for splines only
- Acquires the entire profile within 8 to 10 seconds
- Creates the spline profile, starting from the outer diameter, acquired with the camera (patented)
- Repeatability within 5 microns
- Ideal for splines with 60 – 80 micron tolerances
Availability:
- Techno Series
M304 TECHNO Measuring field Ø40 mm X Part capacity300 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø40 mm × 300 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M306 TECHNO Measuring field Ø60 mm X Part capacity300 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø60 mm × 300 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M309 TECHNO Measuring field Ø90 mm X Part capacity300 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø90 mm × 300 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M314 TECHNO Measuring field Ø140 mm X Part capacity300 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø140 mm × 300 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M318 TECHNO Measuring field Ø180 mm X Part capacity300 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø180 mm × 300 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M604 TECHNO Measuring field Ø 40 mm X Part capacity 600 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø40 mm × 600 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M606 TECHNO Measuring field Ø 60 mm X Part capacity 600 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø60 mm × 600 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M609 TECHNO Measuring field Ø 90 mm X Part capacity 600 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø90 mm × 600 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M614 TECHNO Measuring field Ø 140 mm X Part capacity 600 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø140 mm × 600 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M618 TECHNO Measuring field Ø 180 mm X Part capacity 600 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø140 mm × 600 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M1209 TECHNO Measuring field Ø 90 mm X Part capacity 1250 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø90 mm × 600 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M1214 TECHNO Measuring field Ø 140 mm X Part capacity 1250 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø90 mm × 600 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M1218 TECHNO Measuring field Ø 180 mm X Part capacity 1250 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø90 mm × 600 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M625 TECHNO 250 mm in diameter, 600 mm in height and 200 kg in weight.
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø140 mm × 600 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
M2018 TECHNO Measuring field Ø 200 mm X Part capacity 2000 mm
Designed for high-speed, non-contact dimensional inspection of precision turned components up to Ø140 mm × 600 mm. Optional touch-probe and confocal sensors support complex features such as keyways, undercuts and splined shafts.
