Chatillon CS2+225 & CS2+1100 Motorized Test Stands

Name: Willrich Precision Instrument Company, Inc
Address: 80 Broadway, Cresskill, NJ, 07626, United States
Telephone: 866-945-5742
Price range: $$

The Chatillon® CS2Plus digital force testers for tensile compression, peel, flexural and multi-stage testing.

The CS2Plus is available in two capacities 200 lbf (CS2+225) and 1000 lbf (CS2+1100).

The software is user-friendly. Test setups can be created and saved making it easy for operators to switch to different tests.

Two access levels for logins are available. A “supervisor” login will allow the creation and editing of test settings. An “operator” level login will allow the user to select and run tests but not edit the test setup. This helps to prevent test settings from unintentionally being changed.

This tester uses a 2 in 1 Laptop Console in both Production and Laboratory environments.

With the CS2+ you can perform:

Tensile and compression tests
Limit testing to load, displacement, height or time
Break testing—sharp or percentage
Multi-stage, cyclic tests and height measurements
Peel testing
Spring Testing
Capture 1st and 2nd Peak
RS-232 Auto Result Export

Call 866-945-5742 or email: [email protected] for pricing

Chatillon

Features

One-click operation: Simple and intuitive; with one-click access to favorite tests as well as test results.
Modern design & technology: Linear guide technology, pre-loaded ball screws, and advanced software compensation ensures high displacement measurement precision. 11 Inch 2-in-1 Laptop Console and easy to use, touchscreen or keyboard.
Large, flexible work area: Up to 180 mm throat depth for large specimens and a wide range of grips and fixtures available.
Sample testing and quality assurance: Immediate pass/fail output, automatic data export, controlled access levels and barcode scanning functionality
Security: Two levels of user access: supervisor and operator. Both can be password protected.
Plug & play: A self-contained 2-in-1 Laptop Console using Windows 10 Pro. Just turn on the power and you’re ready to start your test.
Saving, Archiving, Exporting Data: Test results are automatically saved and can be recalled to analyze results or to continue testing a batch run. Results and statistics are exported to CSV and PDF formats. Automatic export of results via RS232 interface after each test.

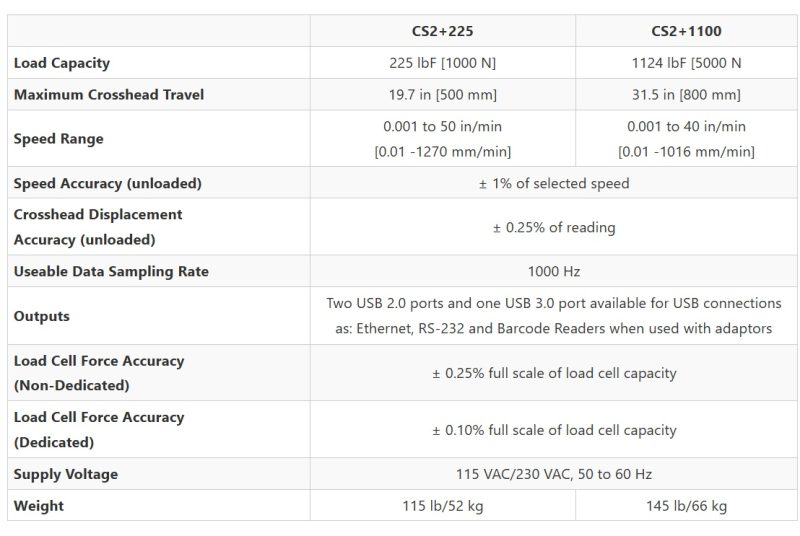

TECHNICAL INFORMATION
RESOURCES
Accessories

Chatillon CS2+225 and Chatillon CS2+1100+225 Series Digital Force Test Stand:

	CS2+225	CS2+1100
A – Height	39.4 in [1001 mm]	51.6 in [1310 mm]
B – Width (excluding console)	18.1 in [460 mm]
C – Depth	21.9 in [557 mm]
D – Base Height	4.3 in [108 mm]
E – Throat Depth	7.1 in [180 mm]	5.9 in [150 mm]
F – Crosshead Travel	19.7 in [500 mm]	31.5 in [800 mm]

Download the Chatillon 225 lbf (1kN) & 1100 lbf (5kN) Series Digital Force Test Stand product information using the link below:

CS2_Data_Sheet_JLW

LC Series Load Cells

The LOAD CELLS are not included with the CS2Plus test stands.

	Capacity
Model Number	gf	lbf	kgf	N
CLC-250G	250	0.5	0.25	2.5
CLC-0002	1000	2	1	10
CLC-04-5	2500	5	2.5	20
CLC-0010	5000	10	5	50
CLC-0020	–	20	10	100
CLC-0050	–	50	25	250
CLC-0100	–	100	50	500
CLC-0200	–	200	100	1000
CLC-0500	–	500	250	2500
CLC-1000	–	1000	500	5000
