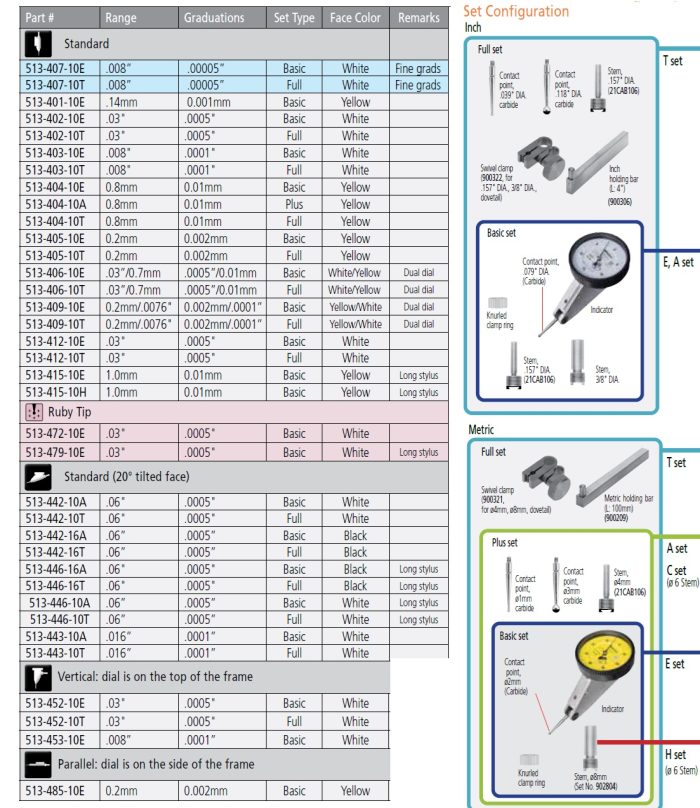

Mitutoyo dial test indicators .000050” / 50μinch model now available
One-piece movement assembly for improved durability & impact resistance.
Contact point length shown on dial face.
Certificate of Inspection included.
Shows results from both measuring directions.
Resilient crystal with high resistance to glare, scratches and impact.

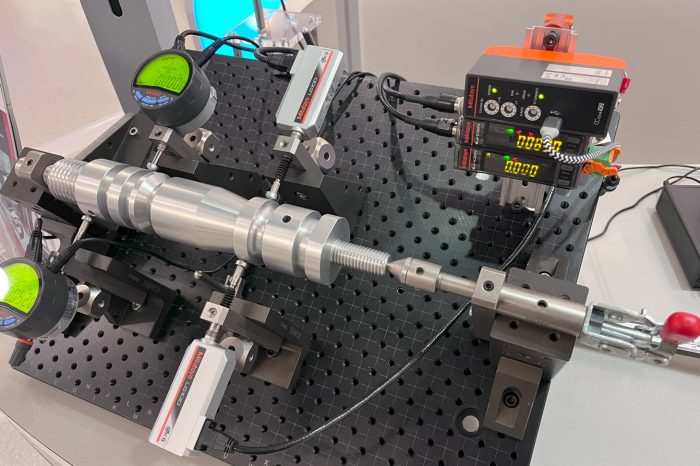

Measure component characteristics TIR, length, diameter and straigthness can be measured using an individual combination of indicator, probe and Laser Scan Micrometer (LSM) and evaluated with Measurelink. MeasurLink, allows setting indicator presets and zero multiple gages with a single button press.
The components that I’m using are a combination of:
add an indicator at the end of the part to measure length.
Straightness could be measured as well if the part or gage were to slide.
With a high accuracy indicator, you can get 0.0001”. Replacing indicators with linear gages and laser micrometer can improve the accuracy quite a bit.
Mitutoyo Digital Readout Packages
Mounting hardware Included on all machine retrofit packages

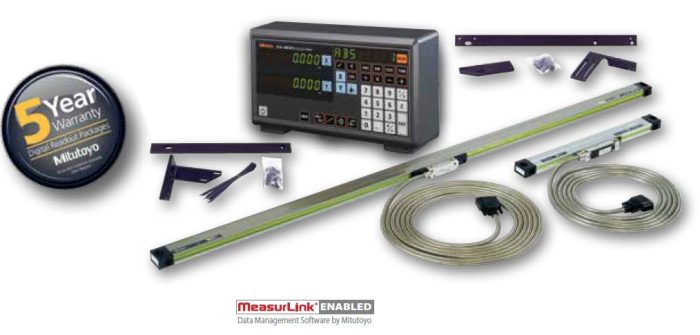

All DRO Packages Include:
KA-200 Counter
KA-200 Counter tray/arm kit
High Resolution Linear Scales (down to .0001” or better!)
Brackets
Other packages and kits are available for mills, lathes, grinders and custom machines and applications. Contact us at 866-945-5742 or [email protected]
Mitutoyo Micro Vickers Testers on Promo until 12-12-24 includes Installation and calibration and free shipping. Note: PC Sold separately
64AAB305PA HM-210A Manual touch panel type
64AAB323PA HM-210B Manual PC Type
64AAB380PA HM-210D Automatic PC Type
PROMO UNTIL 12-13-24 INCLUDES FREE SHIPPING, INSTALLATION AND CALIBRATION
1 kN – 5kN Materials Testing
Mitutoyo ID-C and ID-F Electronic Indicators. The ID-F have illuminated backlighting. The ID-C/ID-F units are Mitutoyo’s first measuring tools to support bidirectional serial communication.* They can be easily connected and linked with a PC via a USB input tool, etc., and in addition to conventional measurement data collection, they also enable control and setting of the ID-C/ID-F units, collection of gauge information, and other operations to be performed in batch from the PC. This contributes to drastic improvement in work efficiency.
Vision Engineering is delighted to announce a new addition to the EVO CAM range – EVO CAM ICON.
The new EVO CAM ICON is configured as an affordable quality inspection tool with a simple, but comprehensive range of features aimed to make inspections faster, easier, and more consistent. EVO CAM ICON will expand the EVO CAM range by offering a new lower starting price to budget-conscious customers.
EVO CAM ICON comes with the same incredible image quality and flexibility of configuration that has made the EVO CAM range one of the best-selling digital microscopes
The 6 OPTA configurations have been compiled to appeal to a wide range of users for a wide variety of applications; for construction, assembly, manipulation, rework, repair, and inspection tasks across a diverse range of industries including plastics, dental laboratory, electronics manufacture, jeweler, education and general production. The X4 and X6 magnifications are most commonly used for detailed hand working. Though many markets will benefit from these magnifications, the initial focus for generating marketing materials will be on industries where manual labor is used for producing low-cost volume items.
Note, the Opta is only sold in blocks of TEN at a time minimum.
Fowler High Precision Trimos V4 Manual Height Gage offering , smart reverse , air cushion, long probing and wireless data option
The NEW Fowler-Trimos V3 vertical measuring instruments have been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they guarantee a robust, precise and reliable product in the long run. Smart reverse feature and long probe compatability
3 Point / 2 Point Spherical bore gage
Features
• Standard range diameter 6-16mm / 1/4-5/8″
• Switchable resolution – inch/metric true conversion
• Preset facility
• Tolerance mode
• RS-232 data output
• Robust construction, hardened plunger, induction hardened body
• Standard plungers available to measure 90º, 100º and 110º
• Other angles available on request
• Setting master supplied as standard
• Bluetooth option available
Alternative size ranges & angles can be manufactured to orde
Intex Gauge Developed to measure both internal and external diameters and lengths, the gauge’s aluminium extrusion beam gives it a rigid, yet lightweight quality – making it ideal for shop-floor environments. The simple release of a locking thumb screw enables the gauge’s measuring direction to be changed easily and quickly. The four gauges in the Intex range have been designed to measure components from 200mm up to 1m long; however extended lengths are available on request.
The types of Dovetail Gauges we have supplied are as follows
1. 2 PT XT Slot Width Head To measure Gap Width”/mm @ nn”/mm contact position from bottom of dovetail
This type requires a gap master to be set
2. 2 PT XT Slot Width Head To Measure Between Pins gap width with specified Pin Dia
This requires a master that is itself dovetailed
Seat Pocket Gaging
