BMD ? Plug Gauge DIATEST ID and OD Measurement

13 Mar

Diatest Easy-to-use, self-indicating and self-centering bore gauge for the measurement of inner- and outer diameter, with highest precision and absolute accurate results.

Field of application is the production of high-precision bores within a standard range of Ø 2.0 mm (T-BMD) up to 270 mm in serial production.

Plug Gauge BMD allows:

  • Static and dynamic measurement
  • Detection of dimensional deviations and shape defects
  • As a hand tool in bores directly at the machine
  • Fitting in measuring fixtures and machines

Fowler Sylvac PS16 V2 3-Points Measuring bench

27 Feb

Measuring bench similar to the PS16 V2 bench, but equipped with a table and anvils assembly allowing very small
shallow internal diameters to be measured at 3 points, thanks to an electronic calculation function.
• Calibration using 2 rings supplied with the bench
• Table with fine height adjustment up to 3 mm with mini digital indicator for precise movement control
• Available in 5 versions :
– 808-1335: version for measuring internal diameters 0.8 to 1.3 mm
– 808-1336: execution for measuring internal diameters 1.3 to 2.5 mm
– 808-1337: execution for measuring internal diameters 2.5 to 4 mm
– 808-1338: execution for measuring internal diameters 4 to 8 mm
– 808-1339: execution for measuring internal diameters 8 to 12.5 mm

Included: Instrument according to technical specifications
Lithium battery CR2477 included
Adapter for Lithium battery CR2032
Instruction manual
Calibration certificate
Table and anvils according to technical specification
Mini indicator and 2 setting rings included
Dust cover

Fowler Syvac PS16 V2 Precision Bench measurement for external dimensions

27 Feb

Fowler Syvac Precision horizontal measuring bench for the measurement of external dimensions

Includes:

Instrument according to technical specifications
Instruction manual
Lithium battery CR2477 included
Adapter for Lithium battery CR2032
Calibration certificate
Table not included
Anvils Ø 1.5mm (908-2175)
Dust cover

Fowler Sylvac PS15 Horizontal and Vertical precision bench for external measurements

27 Feb

Horizontal or Vertical precision bench for measuring small external dimensions. Ability to install digital indicator or LVDT

Standard delivery includes:
max range 10mm with max part size 20mm
Instrument according to technical specifications
Instruction manual
Measuring anvils Ø 1.5 mm (908-2175)
Allen anvils 2 and 2.5 mm
Dust cover

Mitutoyo Step Master

26 Feb

Mitutoyo 516-199 Step Master, 300, 100, 50, 20 µ m

516-198 Step Master Steel Type – 10um, 5um, 2um, 1um
516-199 Step Master 300, 100, 50, 20 µm

516-498 Step Master Ceramic Type – 10um, 5um, 2um, 1um
516-499 Step Master Ceramic Type – 300um, 100um, 50um, 20um

Automation for ID, OD, Keyways, Spline, Chamfers

25 Feb

Automation for bore gages. Mount in machine via tool holder. Measure on the machine

Dynamic In-Process-Measurement (IPM) IPM) by DIATEST

Measured values are sent to a measuring computer via industrial radio DIAWIRELESS.
The important advantage is that the measured data is obtained in real time exactly
where production is taking place. This means that there are no deviations due to
external influences.
Measurement data can be used for a variety of evaluations and process
improvements. For example for
■ tool correction via Profinet at the machining centre or
■ for statistical evaluation of the measured data via the network of higher-level systems,
such as statistics programs (e.g. Q-DAS) or process control programs.
The measuring computer is connected to the machine’s
PLC via Profinet and can communicate with the local
network at the same time.

Mitutoyo Surface Roughness tester SJ-220 Series

05 Feb

Mitutoyo SJ-220 Series Surface Roughness tester

The SJ-220 series of surface roughness measuring instruments offers excellent portability and easeof use on-site, it now also provides touch screen functionality for intuitive operability. Equipped with a built-in battery, it can perform measurements even in environments where power is not available and can be used approximately 1000 times on a full charge. Cableless and paperless work is also made possible by using the Wireless Unit for Measuring
Instrument U-WAVE-TIB.
This is a user-friendly device that provides compatibility and versatility to meet the diverse needs of manufacturing sites.
Measurements can be made on-site, so there is no need to transport large and heavy workpieces. Light and compact, the device is easy to carry and allows for simple one-touch measurement.
The device is equipped with a touch screen and a new user interface. You can perform operations like changing the display screen and adjusting the settings with your fingertip.
The screen size has been expanded to 2.8 inches, achieving high visibility while maintaining a compact device size to fit in one hand.

Increased measuring efficiency capable of displaying results and setting conditions via
wireless communication when used with option accessory U-WAVE-TIB

Note: you cannot use both the U-Wave TIB transmitter and the printer at the same time(Both use the same output port).



Spreitzer – Mini Precision Vises – MP Series

04 Feb

Spreitzer – Mini Precision Vises – MP Series
SIZE (L x W x H): 75mm x 25mm 25mm (3″ x 1″ x 1″)
Material: Aluminum Body with 2 Steel & 2 Plastic Jaws
Remarks: 10mm clamping depth
Precision vise rust-resistant Steel or Aluminum
For clamping small parts on a measuring microscope, profile projector as well as various other applications.
Replaceable jaws of rust-resistant steel as well as plastic are included.
Fixed clamping jaws provided with a Vee, versatile clamping options provides for cylindrical parts.
The additional Vee on the fixed jaw and the clamping slots on the sides of the vise increase the possibilities.
Accuracy Square-accuracy 0,02 mm Parallel-accuracy 0,02 mm
Made in Germany.

other options

Tool Presetters

19 Dec

All Elbo Controlli Nikken presetters by Lyndex-Nikken use precision ground granite for the base and column, providing the utmost thermal stability, making them ideal for the work shop environment. This combination provides the highest
level of repeatability and reproducibility, making Elbo Controlli Nikken presetters ideal for most tool measuring and inspecting applications.

All presetter models utilize interchangeable spindles (CAT, BT, HSK, Polygonal Taper, etc.) thereby eliminating the need for adapters which introduce additional error. All units also come with fifty of the most common post processors for today’s CNC controls.

ROCK SOLID GRANITE CONSTRUCTION

Ametek Creaform Peel 3 CAD

10 Dec

Peel 3.CAD comes with Peel.CAD: reverse engineering software tailored specifically for your 3D scanner. Prepare your scans to transform them into CAD files in your favorite CAD software. Take advantage of ultra-fast processing times that quickly optimize meshes and extract all the geometrical information you need for treatment in your CAD software.
Turnkey reverse engineering solution
Peel 3.CAD comes with integrated reverse engineering software for even more control

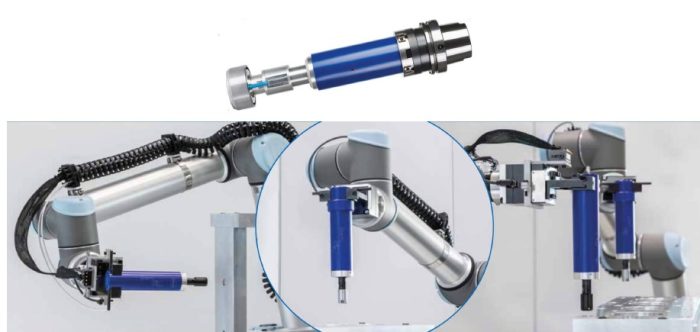

Bore Gages In Process Measurement

27 Nov

* Add our turn-key tooling to your post processs gage stations.
* Floating coupler compensates for part misalignment.
* ID,OD,Keyways, Splines, Chamfers and more.
* Use with your electronics or ours.
* Data transmition via LVDT, wired or wireless.
* Comunicate directly to CobotjRobotjPC/PLC
* Use to sort or catagorize parts.
* CNC feedback for tool offsets.
* In process measurements performed in machine via tool holder.
* Availble for all standard tooling.
* Wireless comunication between Gage and CNC controls through PC.
* XQ versions available with .000020″ accuracy

TESA CLINOBEVEL 3 SQUARE ELECTRONIC INCLINOMETER

26 Nov

Robust and easy to use, the TESA CLINOBEVEL 3 SQUARE is a top of the range portable precision inclinometer. It offers a wide range of applications (straightness, flatness controls, perpendicularity measurements) and it’s available in cast iron in 2 different measuring ranges: ±1° and ±60°.

TESA P/N: 05330220 CLINOBEVEL 3 SQUARE 60D IRON
TESA P/N: 05330221 CLINOBEVEL 3 SQUARE 1D IRON
TESA P/N: 05330222 CLINOBEVEL 3 SQUARE 60D IRON WITH CERT
TESA P/N: 05330223 CLINOBEVEL 3 SQUARE 1D IRON WITH CERT
