Mahr INDICATING SNAP GAGE For rapid measurements of cylindrical parts such as shafts, bolts and
spindles for thickness and length measurements. Indicator not included
Mahr Indicating Snap Gage For rapid measurements of cylindrical parts such as shafts, bolts and spindles for thickness and length measurements. avaliable with 8mm or 3/8″ indicator mount/ no indicator included
Mahr 2057549 Thickness Gage, 57B-1, With 0-0.5″ Capacity, 1086 Zr (Ind), Replaces Item# Xli-57B-12-Mhr

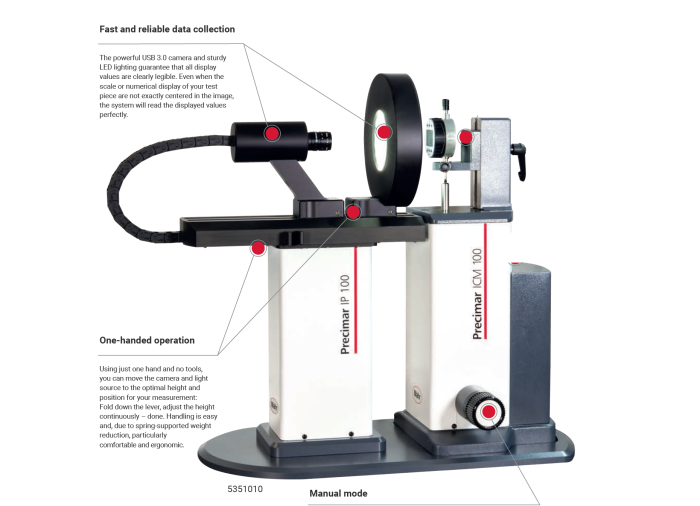

The Mahr Precimar ICM 100 IP is based on the tried-and-tested Precimar ICM 100 dial indicator test station – also known as Optimar 100. This versatile,
market-tested solution can be used for checking analog and digital dial indicators as well as dial comparators by a wide range of manufacturers. It provides traceable measuring
results conforming to standards in a measuring range of up to 100 mm.
2152807 Precimar ICM 100 IP 100 mm / 4 in 0.2 + L / 250 μm Incremental measuring system, USB 3.0 CMOS camera. install and travel expenses NOT included.
2062722 ICM 25 Manual Indicator

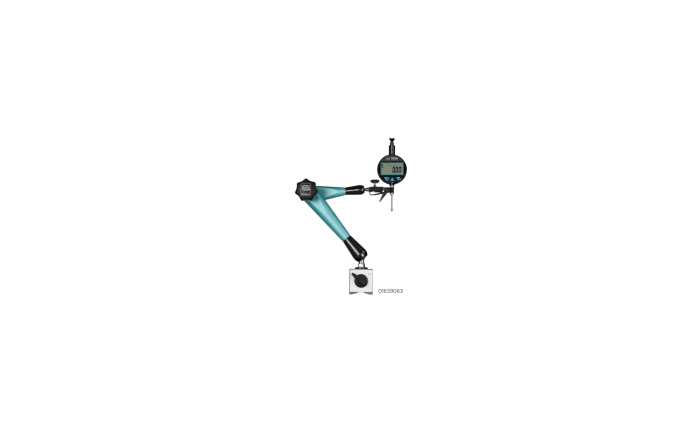

Magnetic supports
• High positioning flexibility
• Simple and secure locking with a two-position knob
• Highly rigid arm and articulation
• Light alloy arm
• Dovetail clamp with a Ø 8 mm clamping bore
• Clamp with fine adjustment
Order# EDP HT L V Dim Base Dim Magnetic force N
01639061 78209 12.20 7.87 Ø 1.18 – 5.90 2.36 x 1.96 x 2.16 800
01639062 78210 15.35 11.02 Ø 1.18 – 5.90 2.36 x 1.96 x 2.16 800
01639063 78211 17.52 13.00 Ø 1.18 – 5.90 2.87 x 1.96 x 2.16 1000
indicator not included

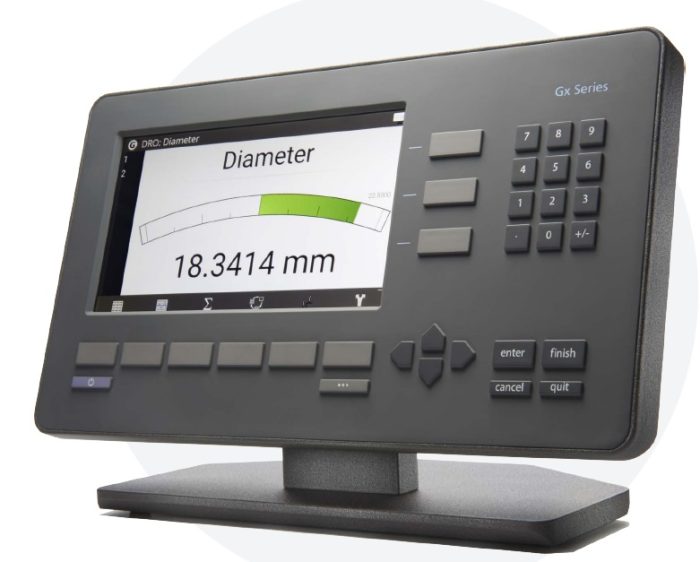

A Digital Readout for Simple and Advanced Gaging Applications. Supporting Touchscreen gesture controls. Advanced gaging using sophisticated
formulas Supports Analog and TTL Devices Flexible, compact, microprocessor-based gage amplifier that can support analog and TTL based
input devices.
Gx200 supports multiple input and output options such as:
Quick Setup – Flexible Formula Entry
Generate direct keyboard entry:
Use a USB or Bluetooth keyboard to type
formulas directly into the dimension setup
screen.
Upload externally authored scripts:
Create part scripts and formulas in the
external editor of your choosing and upload
them to your Gx Part.
Supports Analog and TTL Devices
Flexible, compact, microprocessor-based gage
amplifier that can support analog and TTL based
input devices.
ü USB
ü General Purpose Input Output (GPIO –
Up to 24V logic level)
ü RS-232
ü Footswitch input
ü Bluetooth peripherals
ü Wi-Fi data exchange
Data Graph View, Stats Calculations View
Composed of a robotmounted optical CMM scanner available for a custom integration or in a turnkey solution, the R-Series can solve productivity issues efficiently and guarantee optimal measurement accuracy, speed, versatility, and simplicity, thereby providing increased product quality
Fowler FUSION Mark 1 – Shop Floor CMM, (XY) 520mm x (Z) 270mm
The next generation of shop-hardened non-cartesian CMM.
True to Fowler’s heritage for innovation, the Mark 1 is the world’s first CMM to utilize a delta mechanism.
Designed for robustness and reliability, the Mark 1 CMM will run around the clock keeping your production line running day and night, manufacturing 100% in spec parta, making it ideal whether it is positioned next to a machine tool, in a manufacturing cell, or used in a dedicated inspection area. Five temperature sensors monitoring both the machine and ambient temperature ensure that the Mark 1 is capable of operating in uncontrolled environments and reporting measurements as accurate as if they had been taken at 20°C. The software will also warn you the temperature changes to quickly for repeatable results.
The Automatic Tool Offset Correction available with the FUSION software compliments the attributes of the Mark 1 perfectly allowing utilization as part of a fully automated production process in the midst of a manufacturing environment.
The ergonomics of the Mark 1 have rethought with the operator unmind. design factor. It is not only quick and easy to perform one-off inspections, but also has ample access for either batch inspection or to facilitate automatic loading. The Mark 1 has the largest measuring volume for the footprint of any CMM in a robotic cell. Robust, accurate and reliable, the Mark 1 CMM is the perfect solution to automatically verify part quality for critical components.
Mitutoyo attractive new soft cases boast new features such as a rugged build, stain-resistant zipper tape, long-life zippers, inserts designed around either Digimatic or mechanical tools, and magnet-backed slots to hold a steel rule, backup battery, thumb drive or spanner
Two Soft Case Tool Kit Options are Available:
Case Option 1: Soft case with an insert designed around Mitutoyo Digimatic calipers (0-6″) and micrometers (0-1″)
Case Option 2: Soft case designed for Mitutoyo mechanical calipers (0-6″) and micrometers (0-1″)
These new soft case tool kits can be ordered as a package with your Mitutoyo caliper or micrometer of choice or by itself for Mitutoyo calipers and micrometers you already own. Wood cases are still available as well.
HandySCAN 3D|BLACK Series integrated photogrammetry capabilities, this enables Creaform’s flagship metrology-grade 3D scanners
to deliver 12 microns accuracy, setting a new industry standard for handheld devices
Calipers -DATAPAK With the Bluetooth® transmitter provided along with the TESA calipers, data acquisition has never been easier!
With the free download data acquisition software DATA-VIEWER, you can automatically fill in your
measurement reports. TESA instrument drivers included. Software configuration required: Windows 7 /
8.1 / 10 processor, 32 & 64 bits. Minimum hardware configuration required: Intel i5
or equivalent, 4 GB of RAM, 100 MB of hard drive.
53-190-012-0 Mini-Horizontal with internal support plates, standard internal & external probes.
Internal measurements: .24″—4″ (6—100mm) depending on accessories used.
External measurements: 0—4″ (0—100mm). The effective measurement allows a range of 1″ (25mm) which corresponds to the range of Sylvac probe No. 54-618-500.
External measuring range is increased by displacing the end stock (direct zero setting or setting of a preselected value).
Internal measuring range is increased by displacing the measuring inserts (setting of a preselected value according to a ring gage).
Accuracy: Within .00006″ (1.5μ) — corresponds to accuracy of Sylvac probe No. 54-618-500. Used with Sylvac 1″ probe and readout. A accurate to
0.00006″
Resolution: Using Display Unit D50S No. 54-618-148, the resolution is .0001″ or .00001″ (.001 or .0001mm).
Renishaw’s metrology tables are manufactured using cast aluminium plate tops, supported by a rigid aluminium extruded frame and legs that can accommodate and carry large and heavy parts. The tables are supplied with heavy‑duty castors that allow portability and an easy to use mechanism for locking to the floor substrate.
Metrology fixture tables are used in many industries and for numerous applications.
The table’s modular construction provides endless flexibility to mount portable measurement devices. The fixture plate is supplied in either hard coat clear anodise or optional black anodise, which is better suited for non-contact optical inspection purposes.
54-100-124-0 range 0 – 24″/600mmaccuracy 0.0020″/0.05mm jaw depth 5.4″/138mm
54-100-140-0 range 0 – 40″/600mm accuracy 0.0025″/0.06mm jaw depth 5.4″/138mm
54-100-160-0 range 0 – 60″/1500mm accuracy 0.0055″/0.13mm jaw depth 5.9″/150mm
IP65 – Also features constant measuring force mechanism
Fowler Trimos V8 Series Electronic Height Gages 2D with FINE ADJUST
Accuracy 1.2 + L(mm)/1000 μm
Smart Reverse for Ø
Air Cushion
Wireless Option
Manual/Motorized
Fine Adjustment
Color Display
2D Measuring
Fowler Trimos V Series
Electronic Height Gages
The Fowler Trimos V series vertical measuring instruments have been developed for the most difficult
shop floor environments. Manufactured in Switzerland, they guarantee precise and repeatable measurements
with superior ease of use.
Features:
• Electronically adjustable measuring force 0.75/1.5 (N)
• Lithium-ion rechargeable batteries last up to 40 hours
• Bluetooth transmitter available
• V7: Repeatability (2s): 0.00002″/0.0005mm (Ø 0.00004″/0.001mm)
All models Include:
• Charging unit
• Measuring probe with ruby ball Ø4mm
• Probe holder elbow Ø 8mm
• Setting gage
• User’s manual and test certificate
5 YEAR WARRANTY
